PremiumAV PCI Firewire Card

1,599.002,999.00 (-47%)

Sold By: rinku rinku

28 in stock

  • 1-Lane (x1) pci-card with transfer rate 2.5GB/s full duplex channel
  • Support 400/200/100Mbps data transfer rate
  • Simultaneous operation of multiple high-performance devices

Compare
SKU: MST-1225-1 Category:
Report Abuse

pcie firewire card pcie 1394A card firewire 400 card

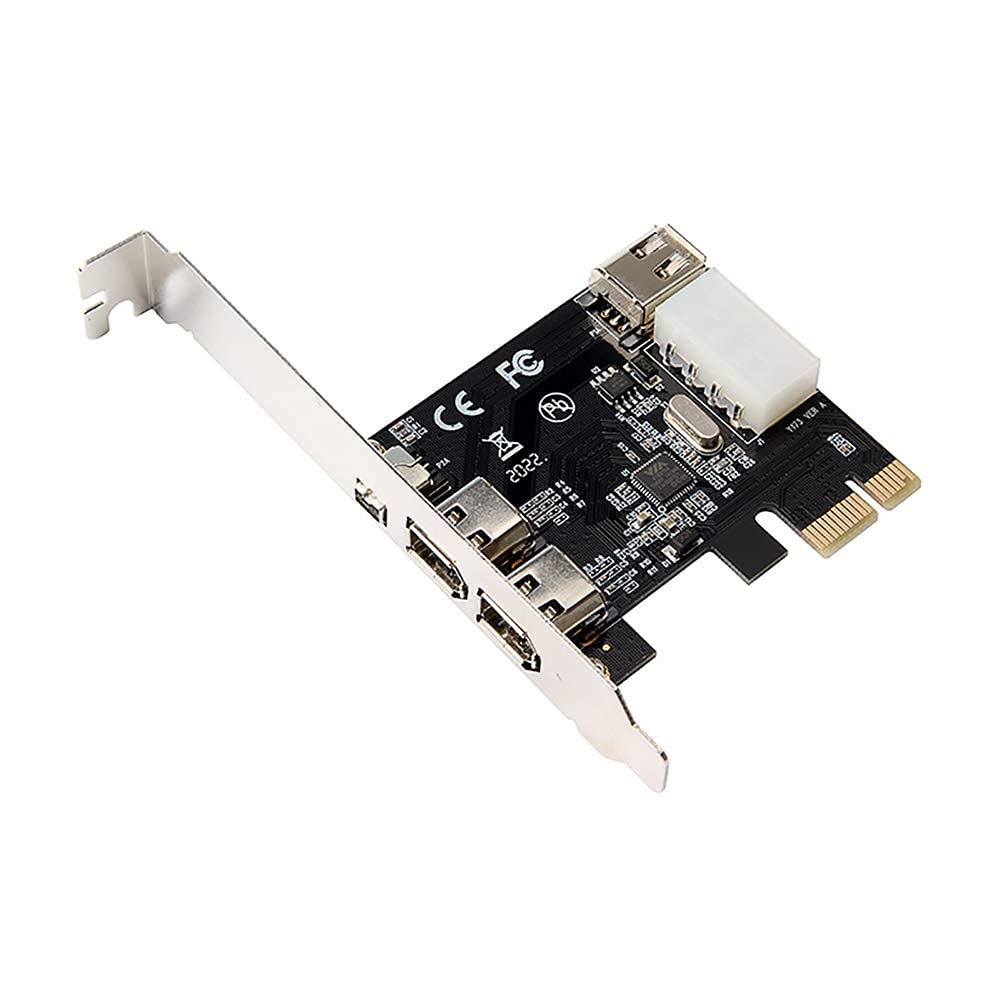

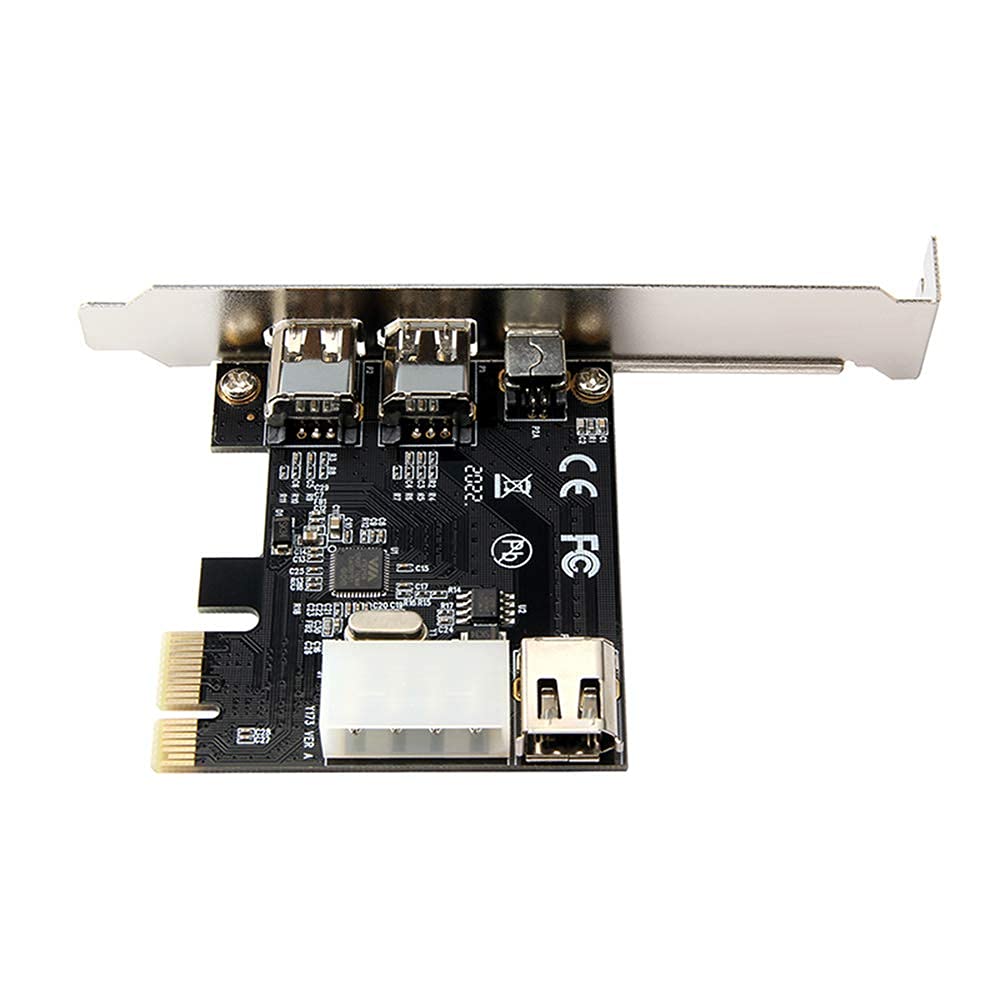

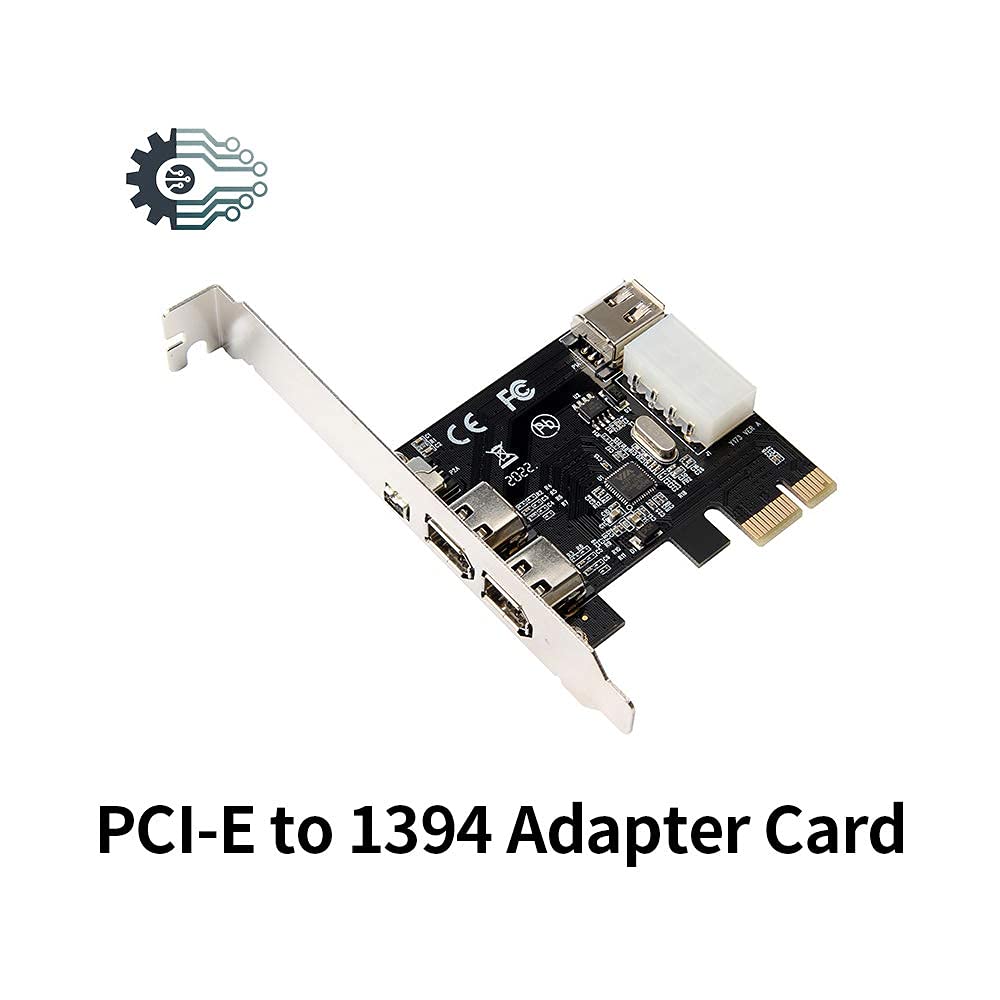

PCIE to 4-Ports 1394A Firewire 400 Expansion Card- IEEE 1394A OHCI 1.1 Interface for Cameras,DV Camcorders

The LinksTek PCIE-1394A will allow users add 4X Firewire 400 1394A ports on Windows desktop PCs, Servers and industrial devices. It is based on VIA Lab VT6315 single chip PCIE to Firewire 400 host controller. It is designed on IEEE 1394A OHCI (Open Host Controller Interface) 1.1 standard will provide 400Mbps max data transmission speed for connected 1394A device. It will be compatible with hot-plug1394A device such as Digital Cameras, CD-ROM, DVD-ROM Drive, DV camcorders, Hard drives, Media equipment, 1394A Video and Audio devices and Printers.

pcie firewire card pcie 1394A card firewire 400 card

Product Features:

Model: PCIE-1394A Input Interface: PCIE 1.1 X1 interface

Output Interface: 3X 6Pin 1394A and 1X 4Pin 1394A Data Rate: FireWire 400Mbps (50MB/S) max data speed

PLEASE NOTE: PCIE-1394A Firewire card designed on PCIE X1 interface,users must check if PCs have at least one active PCIE slot before purchase.

Technical Data:

pcie firewire card pcie 1394A card firewire 400 card

pcie firewire card pcie 1394A card firewire 400 card

pcie firewire card pcie 1394A card firewire 400 card

Firewire 1394A 400Mbps Max Speed

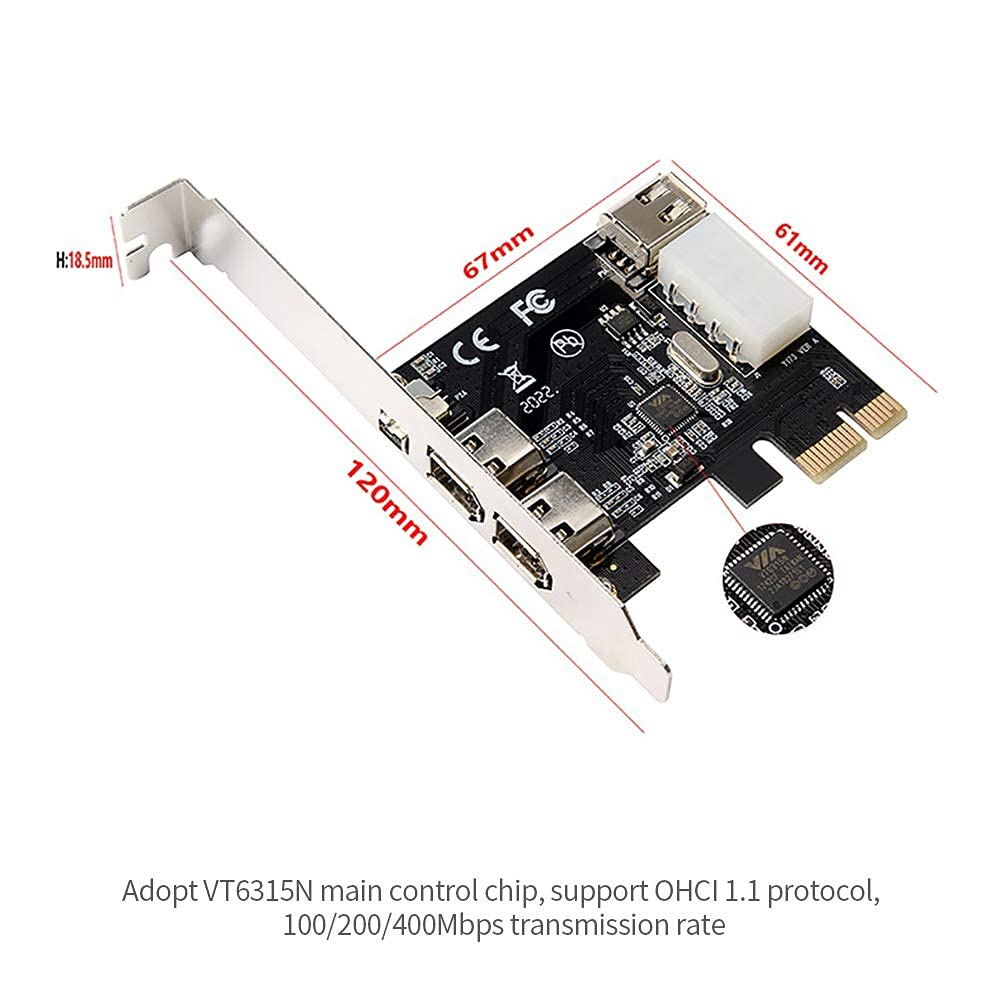

  • Based on VIA major-chipset VT6315 the single chip PCIE to 1394A OHCI 1.1 host controller,provide fast and stable connection for 1394A device.
  • Supports firewire 400 standard,users can get 400Mbps (50MB/S) max connection speed.
  • Auoto negotiate data speed from 100Mbps,200Mbps,400Mbps.



Works on Main Stream Windows



  • Plug and Play on Windows 98, 2000, 2003, XP, Vista, 7, 8, 8.1,10, 11 (32/64bit) and Windows Server 2019, 2016, 2012R2, 2012, 2008R2, 2008, 2003R2, 2003 (32/64bit).
  • Due to PC setting issue,some PC need to install Windows Legacy Driver.



Safeguard Users Videos Source



  • This PCIE-1394A card will safeguard users videos source and more data on old type PCs DVs ,cameras etc.
  • Save more video source on outdated device such as DVs camcorders etc.



pcie firewire card pcie 1394A card firewire 400 card

pcie firewire card pcie 1394A card firewire 400 card

pcie firewire card pcie 1394A card firewire 400 card

Compatible with 1394A Type DVs

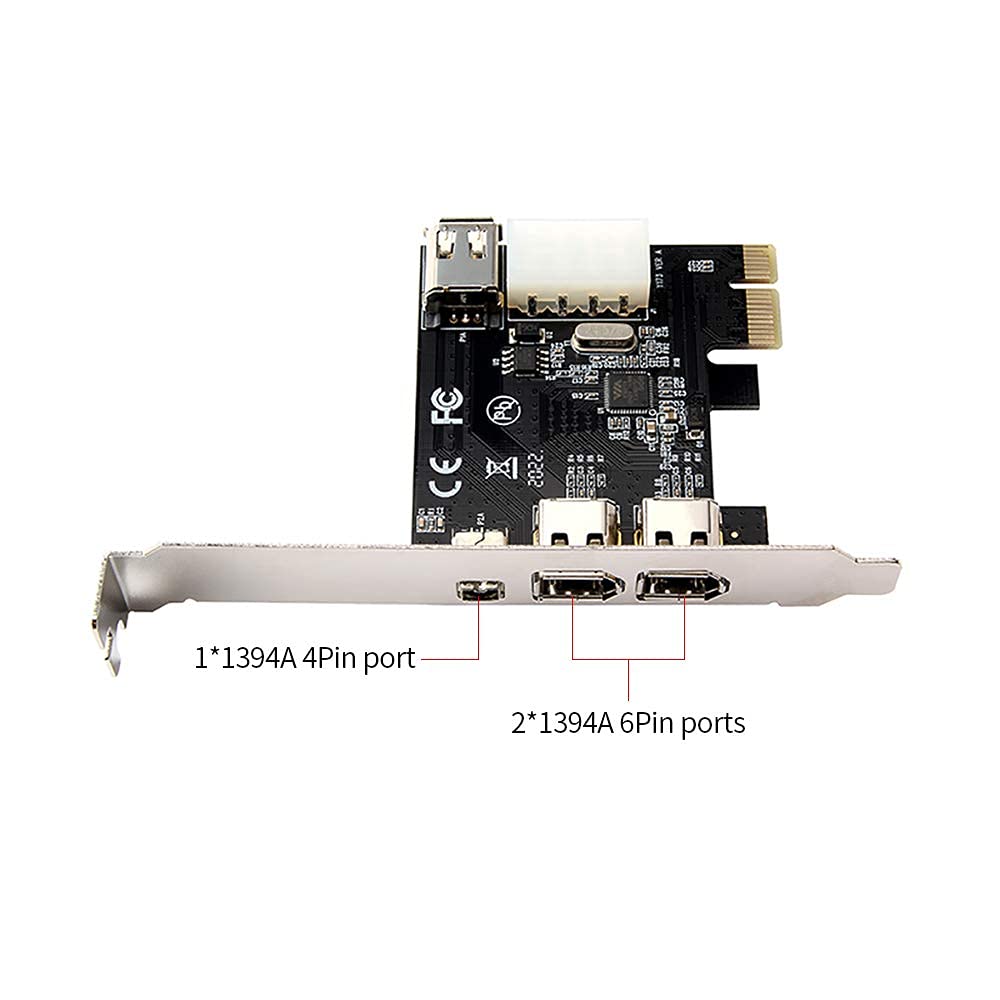

  • Provide 3X 6Pin and 1X 4Pin 1394A interface for multiple 1394A device connection.
  • Supports 1394A OHCI 1.1 protocol,Will seamless connect to industrial cameras and DVs comcorders, import video source from 1394A devices.



PCIE 1.1 Standard,PCIE X1 Interface



  • Full complaint with PCI Express 1.1 provide 2.5Gbps bandwidth for all 4-Ports 1394A. Will works on PCIE 1.0, 1.1, 2.0, 3.0 standard.
  • PCIE X1 interface degsin will works on PCIE X1, X2, X4, X8, X16 slot.



Works on Slim Standard PCs



  • The PCIE-1394A will comes with full height brancket for standard size PCs and the low profile bracket for slim PCs.
  • Compatible with 2U, 3U computer and server case.



Install this PCIE-1394A Card on Desktop PCs.

pcie firewire card pcie 1394A card firewire 400 card

Product Description:

The LinksTek PCIE-1394A will allow users add 4X Firewire 400 1394A ports on Windows desktop PCs, Servers and industrial devices. It is based on VIA Lab VT6315 single chip PCIE to Firewire 400 host controller. It is designed on IEEE 1394A OHCI (Open Host Controller Interface) 1.1 standard will provide 400Mbps max data transmission speed for connected 1394A device. It will be compatible with hot-plug1394A device such as Digital Cameras, CD-ROM, DVD-ROM Drive, DV camcorders, Hard drives, Media equipment, 1394A Video and Audio devices and Printers.

Product Features:

Model: PCIE-1394A Input Interface: PCIE 1.1 X1 interface

Output Interface: 3X 6Pin 1394A and 1X 4Pin 1394A Data Rate: FireWire 400Mbps (50MB/S) max data speed

PLEASE NOTE: PCIE-1394A Firewire card designed on PCIE X1 interface,users must check if PCs have at least one active PCIE slot before purchase.

System Requirements:

Plug and Play on Windows 98, 2000, 2003, XP, Vista, 7, 8, 8.1, 10 (32/64bit) and Windows Server 2019, 2016, 2012R2, 2012, 2008R2, 2008, 2003R2, 2003 (32/64bit). Please NOTE: Due to setting issue, some PCs need to install Windows Legacy Driver.
